Product Overview

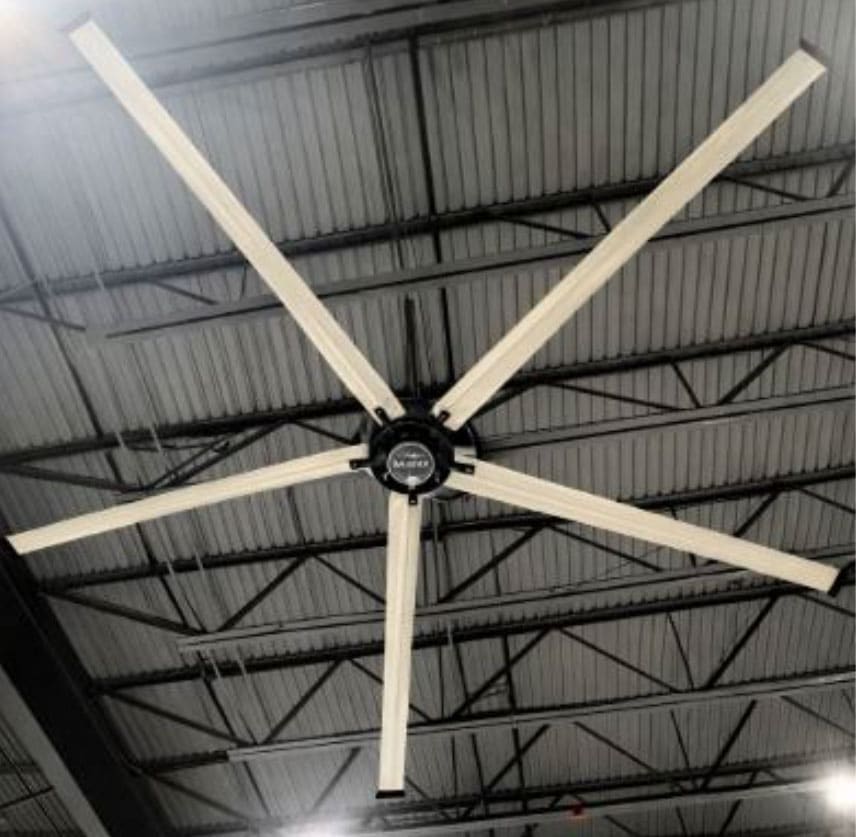

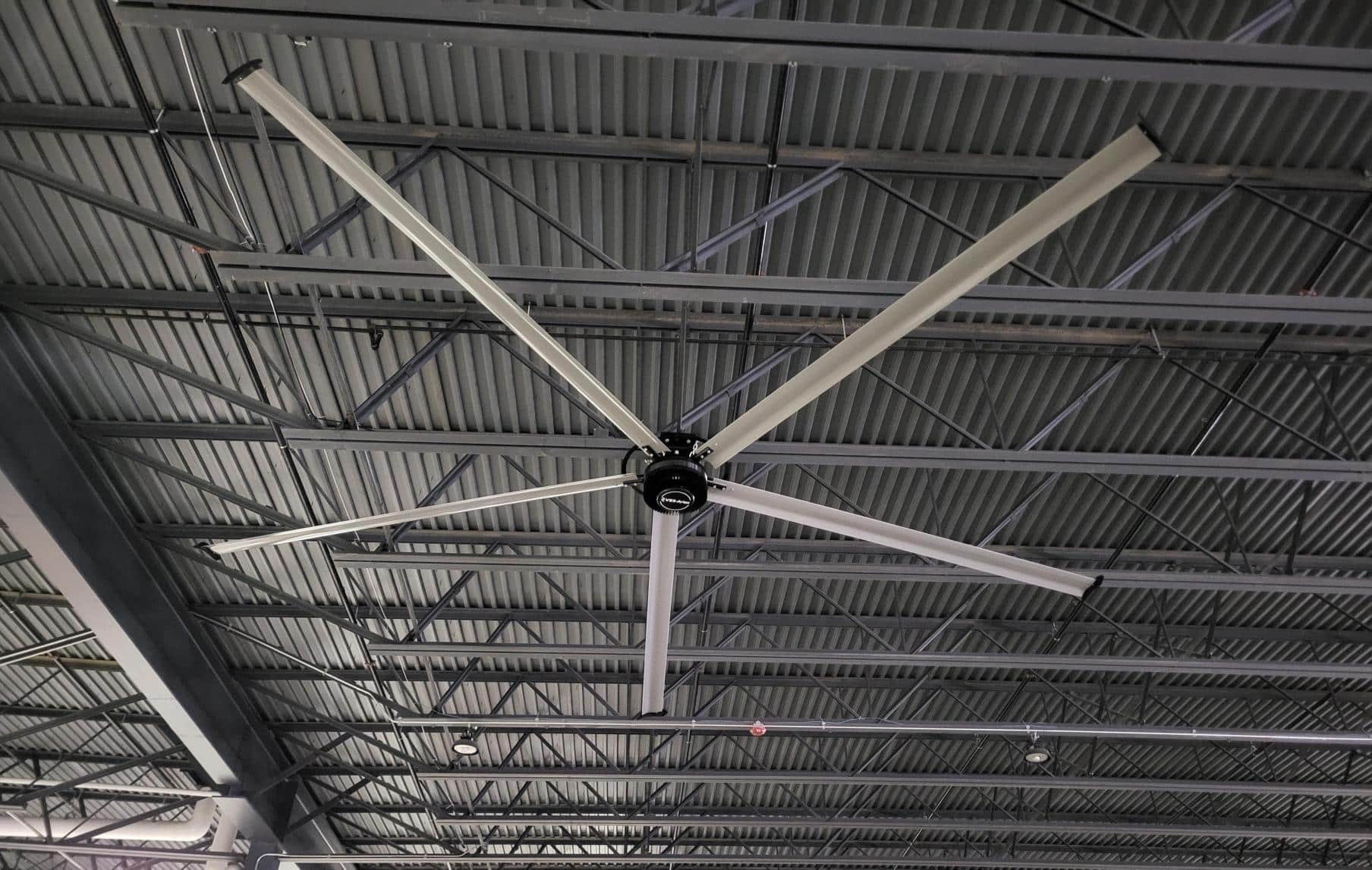

The VES-Artex 20’ HVLS Industrial Fan delivers powerful, energy-efficient airflow for large agricultural, industrial, and commercial spaces. Designed with a direct-drive permanent magnet motor, this high-volume, low-speed fan provides consistent air movement, temperature equalization, and improved occupant comfort with minimal operating cost. A single 20-foot HVLS fan can cover up to 22,000 square feet, making it ideal for dairy barns, livestock facilities, warehouses, and manufacturing plants. Precision-balanced aluminum blades ensure smooth, quiet operation, while variable speed control allows airflow to be customized to your environment. Built for durability and low maintenance, the VES-Artex HVLS fan offers long-term performance in demanding conditions.

HVLS Industrial Fan

  • Available Options

  • HVLS fans are available in diameters of 20′ (6.1m).
    Part #: 120240

    Blade Material: Aviation Grade Aluminum
    Max Speed: 62RPM
    Fan Weight: 120kg
    Power: 1.5HP (1.1 kW)
    Voltage: 200/230V
    Amps: 4.4A
    Protection: IP55 Motor
    Gearbox: None (Direct-Drive)

    Applications Include

    Commercial: Gyms, retail spaces, event halls

    Agricultural: Dairy barns, livestock housing, poultry facilities, equipment storage

    Industrial: Manufacturing plants, warehouses, distribution centers

  • Resources & Documentation

  • HVLS Fan Air Pattern

    A single 20’ HVLS fan can offer up to 22000 sqft (2000m) of coverage.
    Ask your VES-Artex rep for spacing and application specific recommendations for your area.
